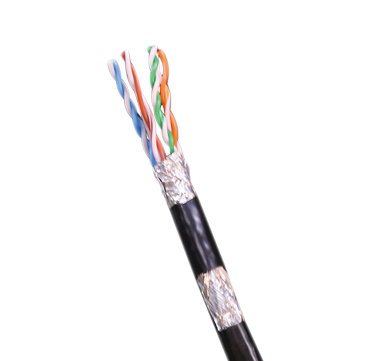

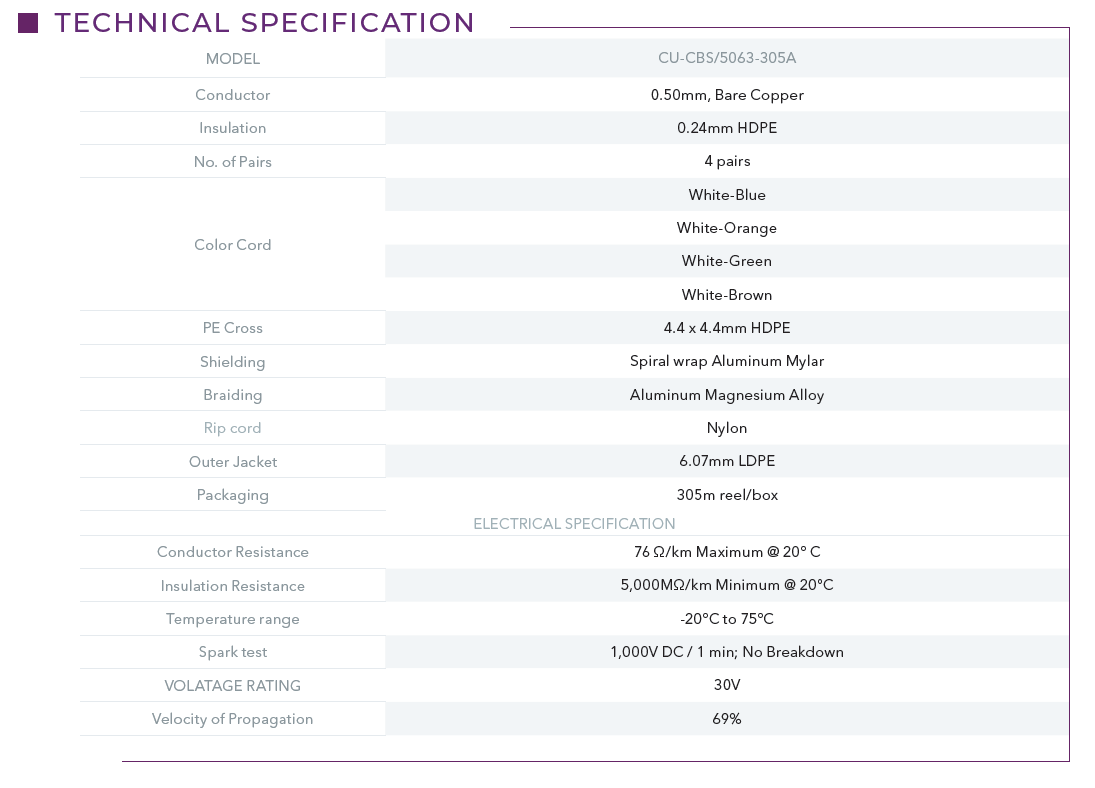

CU-CBS/5063-305A

Features

  • 0.50mm OFC copper
  • 24 AWG
  • 4 Pairs over PE cross
  • 6.07mm ldpe outer jacket
  • Fluke-test passed
  • Outdoor use
  • 15 Years warranty , 250Mhz frequency , support POE bt (60w),weatherproof jacket, UV resistant.
  • Standard: VERIFIED-TO-EIA/TIA-568B-&-ISO/IEC-11801

Application



  • Integrated wiring system
  • Support data, voice, video signal
  • Support 10Base-T, 100Base-TX, 1000Base-TX
  • 100Base-VG-ANY LAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
    Noisy environments.
